Blaze3D

The blazingly fast 3D data viewer for Windows and Linux.
Blaze3D might be the fastest 3D data viewer currently available.
It supports both the visualization of triangle mesh and pointcloud data stored in many file formats.

Showcase

As you'll notice in the videos below, Blaze3D is very fast and supports many workflows for viewing your files.

Running from console

You can view your model by calling:
blaze3d file.name


Or an entire folder via:
blaze3d folder

Drag&Drop support

You can drop any supported model or folder on the already opened window

Stream loading

Get instant visual feedback even before loading is done

Folder traversal

You can traverse the currently opened folder with the arrow keys

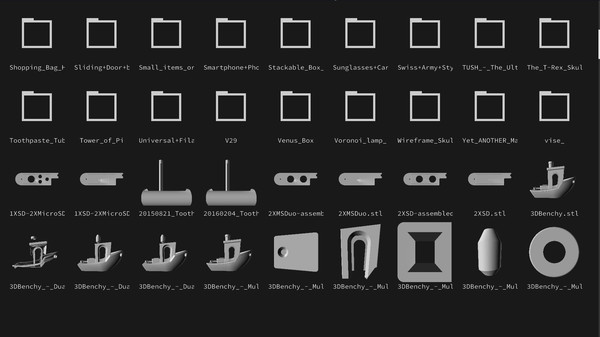

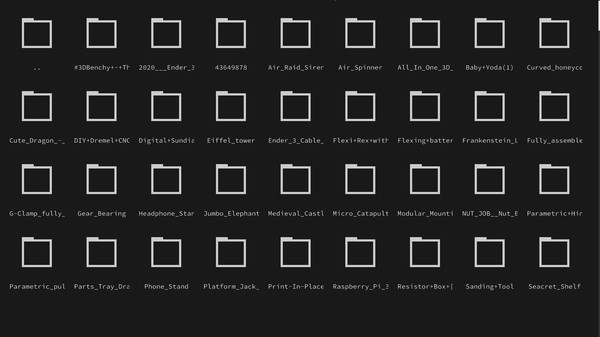

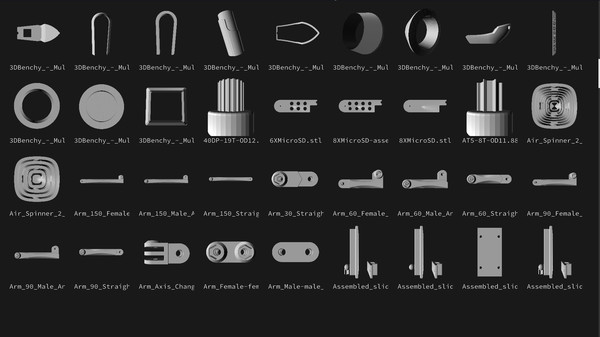

Folder view

You can view all models within a folder and use Blaze3D like any other file browser

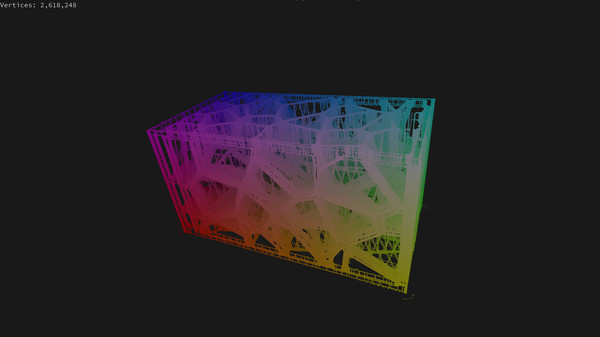

Colored point shading

Point data is always shaded colorized. This makes it easy to understand even complex 3D models

Camera controls

Move, rotate and zoom are fully supported

Supported file formats

Blaze3D Lite (Steam Demo) and Blaze3D Pro (Steam Buy)

• .stl both binary and ASCII

• .xyz

• .xyzc ignoring colors

• .xyzn ignoring normals

• .csv if formatted similar to .xyz

• .txt if formatted similar to .xyz

• .obj

• .gcode

Blaze3D Pro (Steam Buy) exclusive

• .ply both binary and ASCII ignoring colors etc.

• .off

• .psl

• .ptx

• .las only loading point coordinates

• .pts

• .glb basic support (v2.0, index meshes, no colors, no textures ...)

• .gltf basic support (v2.0, index meshes, no colors, no textures ...)

Editions

Blaze3D is available as free Lite (Steam Demo) and paid Pro (Steam Buy) edition.
The Pro edition supports additional file formats.

High efficiency

Blaze3D causes no CPU usage when idle and uses very little memory (if double_buffer_data is turned off). Saving power and allowing you to work on other tasks in parallel.
Incremental rendering of point clouds is also supported. This makes it possible to render very
